Technical specification

Model -- CMSM0300 .

Machining range OD
250-300.

Machining width stroke
600.

Drive : Sprocket with chain
Yes.

Power: Motor
Electric.

Tool head single point manual / auto
Yes.

Model -- CMSM0600 .

Machining range OD
400-600.

Machining width stroke
800.

Drive : Sprocket with chain
Yes.

Power: Motor
Electric.

Tool head single point manual / auto
Yes.

Model -- CMSM1000 .

Machining range OD
600-1000.

Machining width stroke
1000.

Drive : Sprocket with chain
Yes.

Power: Motor
Electric / Hydraulic .

Tool head single point manual / auto
Yes.

Model -- CMSM1200 .

Machining range OD
800-1200.

Machining width stroke
1200.

Drive : Sprocket with chain
Yes.

Power: Motor
Electric / Hydraulic .

Tool head single point manual / auto
Yes.

CMSM0300

Coren's Mid shaft machine

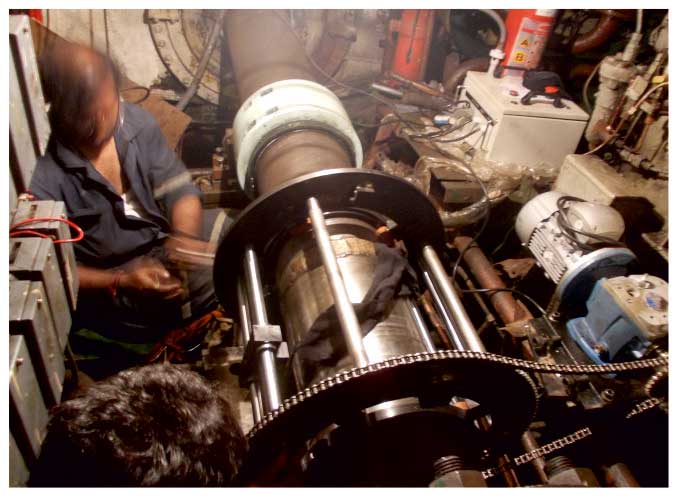

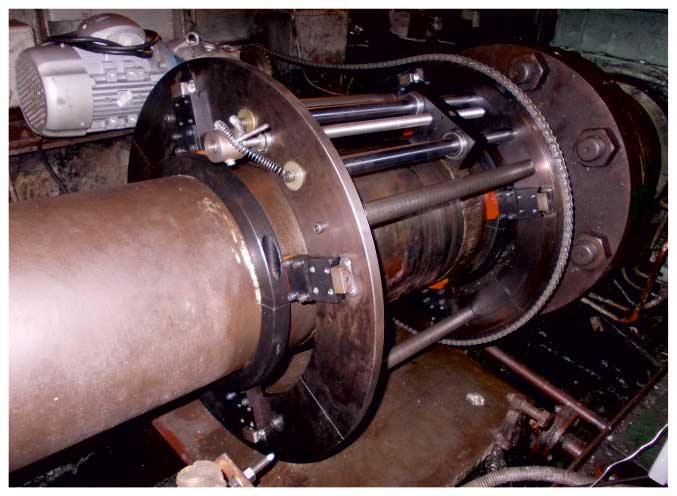

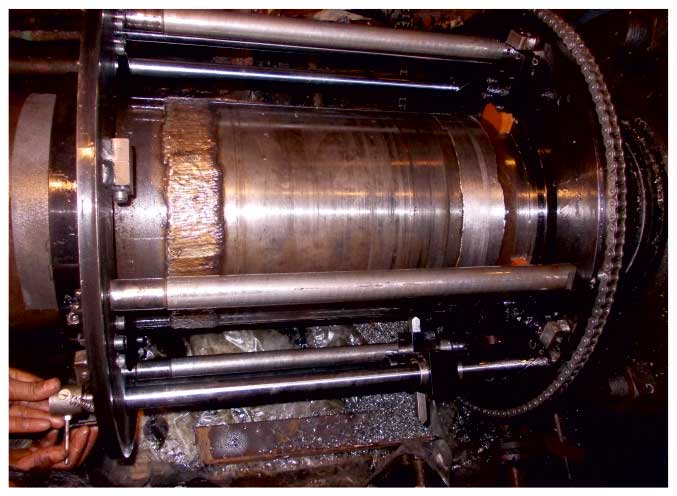

Coren's Mid shaft machine CMSM0300 is used for OD machining of shafts in in-situ condition.

State of art design

CMSM0300 has unique design to accommodate at any location along the length of the shaft. It can be used to machine the grooves, steps and surface machining on the OD of the shaft.

Range of mid shaft machines

The mid shaft machines range is limited. Hence for every 100 - 150mm difference in diameter different range of machine is required.

Versatile setups.

CMSM0300 can be mounted in horizontal, vertical and inclined positions on different shafts. The machining stroke of this machine can be extended as required.

Robust construction

CMSM0300 is constructed for heavy duty applications and still easy for handling. CMSM0300 is driven by hydraulic / electric motor for efficient material removal.

Various applications

CMSM0300 can be used in various industries like power, steel, shipbuilding / repair, mining cement sugar, heavy engineering etc, covering wide range of applications like shaft, journal, pinion squirrel, rope drums, etc.,
