Technical specification

Model -- CLBM1000.

Boring Bar
Diameter 100 X 3000 to 6000mm long hard chromed with inbuilt lead screw .

Working Range (Boring)
Diameter 200 to 1000mm .

Working Range (Facing)
Diameter 200 to 1300mm .

Tool Head
Single point - Stacking type manually adjustable for different diameters .

Facing Head
Single point, telescopic adjustable mounts on the bar .

Motor
Hydraulic motor .

Axial Feed
Servo motor with gear box .

Rotational Drive
Gear and worm type permanent lubrication .

Mounting Type
Bearing with bracket few ID & OD Mounting .

Controls
Radial - Manual, Axial - Hand Pendant.

Power
By external hydraulic power unit 15HP .

CLBM1000

Coren's boring bar

Coren's boring bar CLBM1000 is a portable line boring machine used for onsite machining of bores and faces with high tolerance and good surface finish.

State of art design

CLBM1000 is designed to accommodate on wide range of line boring applications with bore diameters ranging from 200mm to 1000mm. It also accommodates a facing attachment to machine the bore flanges and grooves.

Robust Construction

CLBM1000 is constructed for all heavy duty applications and still easy for handling. CLBM1000 is driven by hydraulic motor for efficient material removal.

Versatile setups

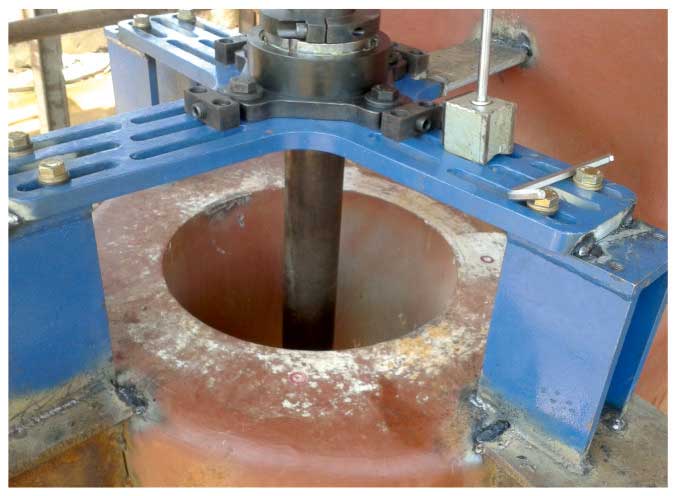

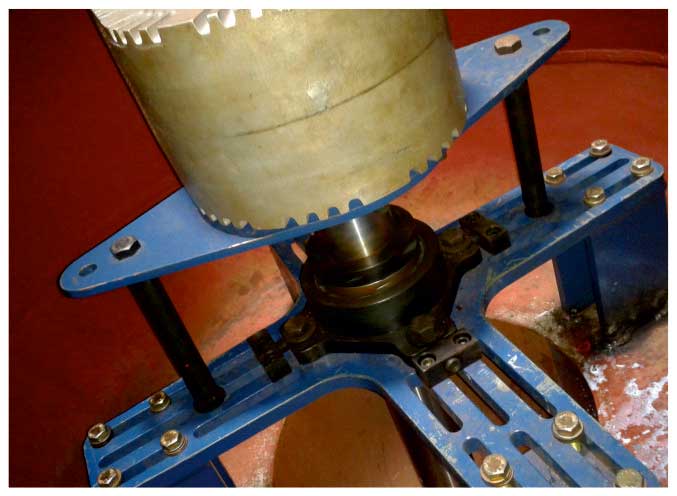

CLBM1000 can be mounted in horizontal, vertical and inclined positions on different line boring applications. The end mount bearing with brackets are designed for quick mounting and the rotational drive unit can be mounted anywhere along the length of the bar.

Various applications.

CLBM1000 has its usage on various industries like power, steel, shipbuilding, heavy engineering etc., covering wide range of applications like turbines, stern tube, rudder horn, hot strip mill, crane pedestals, slew bearing bores etc.
