Technical specification
Model -- CGMM3060 .
Beams
300 x 3000mm long = 6000mm long each side.
Cross gantry
300 x 3000mm long.
Drive
Hydraulic with Hydraulic power unit / Electrical Motor with gear box.
Quill
ISO 50.
Cutter
Multipoint milling cutter .
Overall size of the mill
3000 mm width x 6000 mm length
can be converted to :
3000 mm X 3000 mm
by adding beams / gantry :
4000 mm X 6000mm,
3000 mm X 12000 mm & so on.

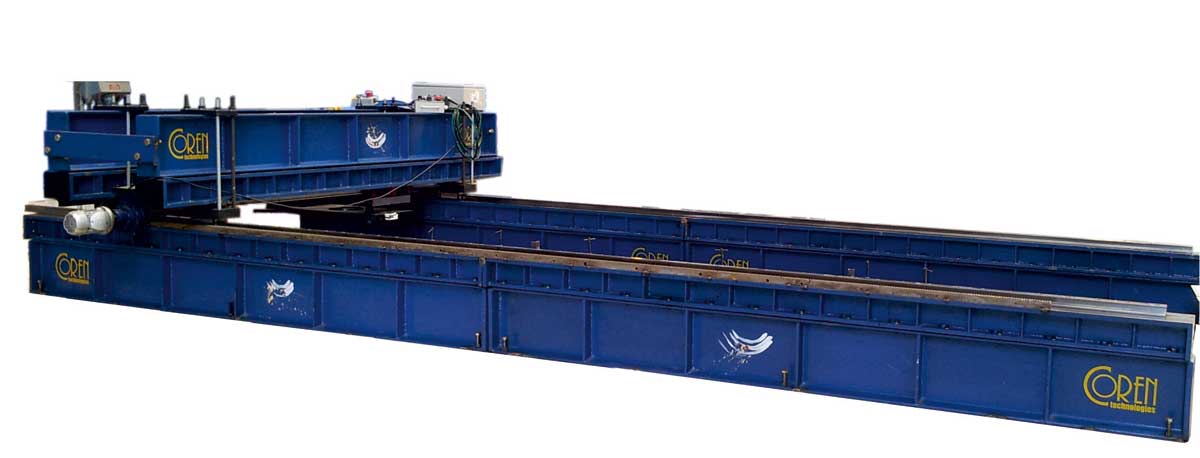

CGMM3060 Coren's Gantry Milling Machine
Coren's Gantry Milling Machine CGMM3060 is a 3 axis portable gantry mill used for machining the large uneven surfaces to achieve the required flatness and surfaces finish.
State of art designCGMM3060 is designed to mount on any type of jobs for the surface machining in combination of 3000 x 3000mm.
Coren's Gantry Milling Machine CGMM3060 is a 3 axis portable gantry mill used for machining the irregular surfaces to achieve the required flatness and surfaces finish.
State of art designCGMM3060 is designed to mount easily on any types of job for surface machine in combination of 3000 x 3000mm.
Robust constructionCGMM3060 is constructed for heavy duty applications and still easy for handling, CGMM3060 is driven by hydraulic / electric motor with ISO50 spindle for efficient material removal.
Versatile set upCGMM3060 can be mounted in the combination of 3000 x 3000mm / 8000/ 9000/12000mm. The milling cutter position can be tilted to 30degrees both sides.
Various applicationCGMM3060 has its usage in various industries like power, steel, shipbuilding mining and heavy engineering etc covering wide range of application like engine mounting pads, GT mounting pads, Gear box mounting pads, Motor foundations, Square / Rectangular flanges, slots, grooves, gasket areas, girders, heavy construction girders etc.
